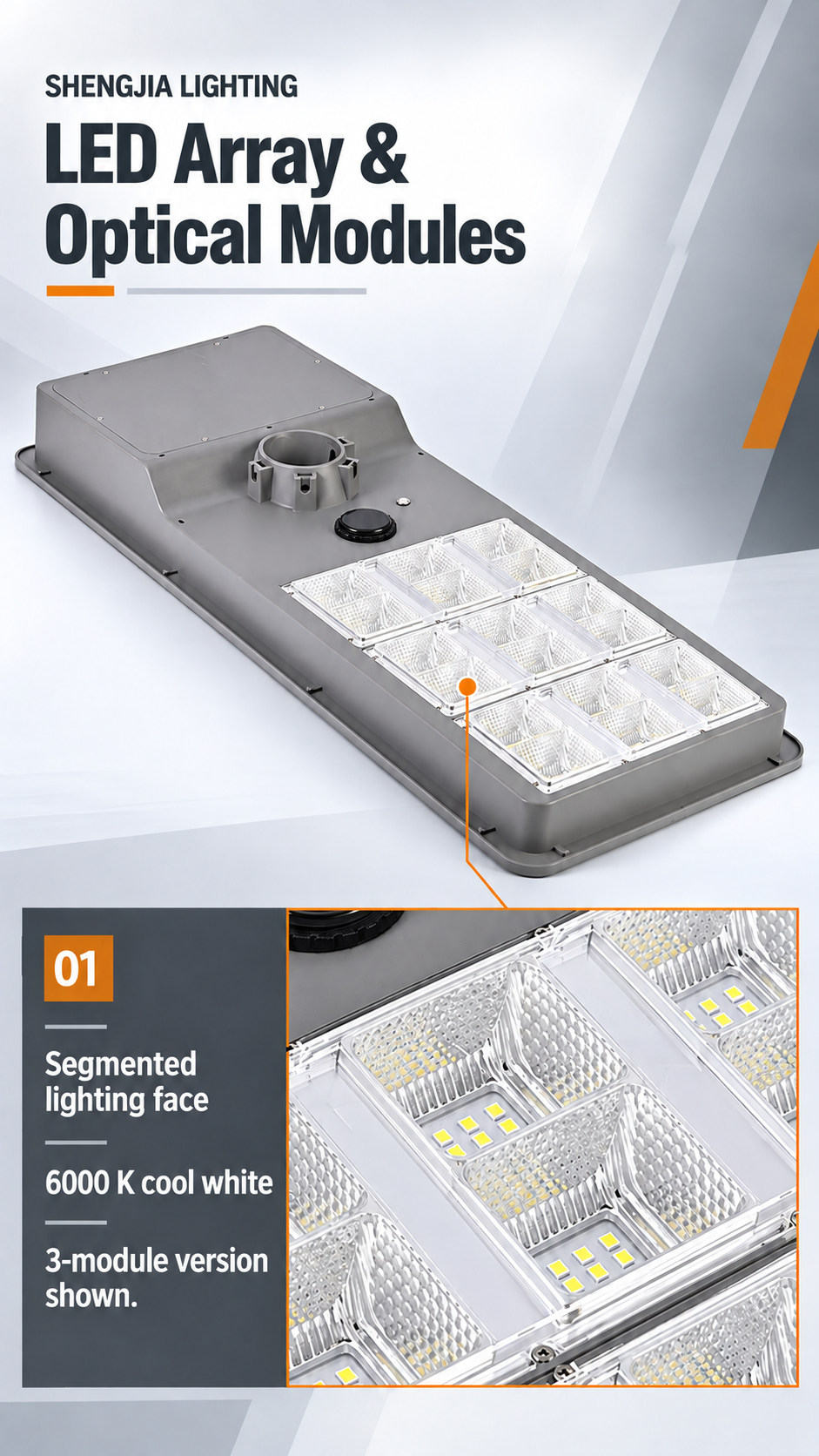

View Full-Size Detail Segmented LED Optics
The lighting face uses segmented optical modules. Choose 3, 4 or 5 Lighting Modules with 288, 384 or 480 LED chips respectively.
SOLAR LIGHTING

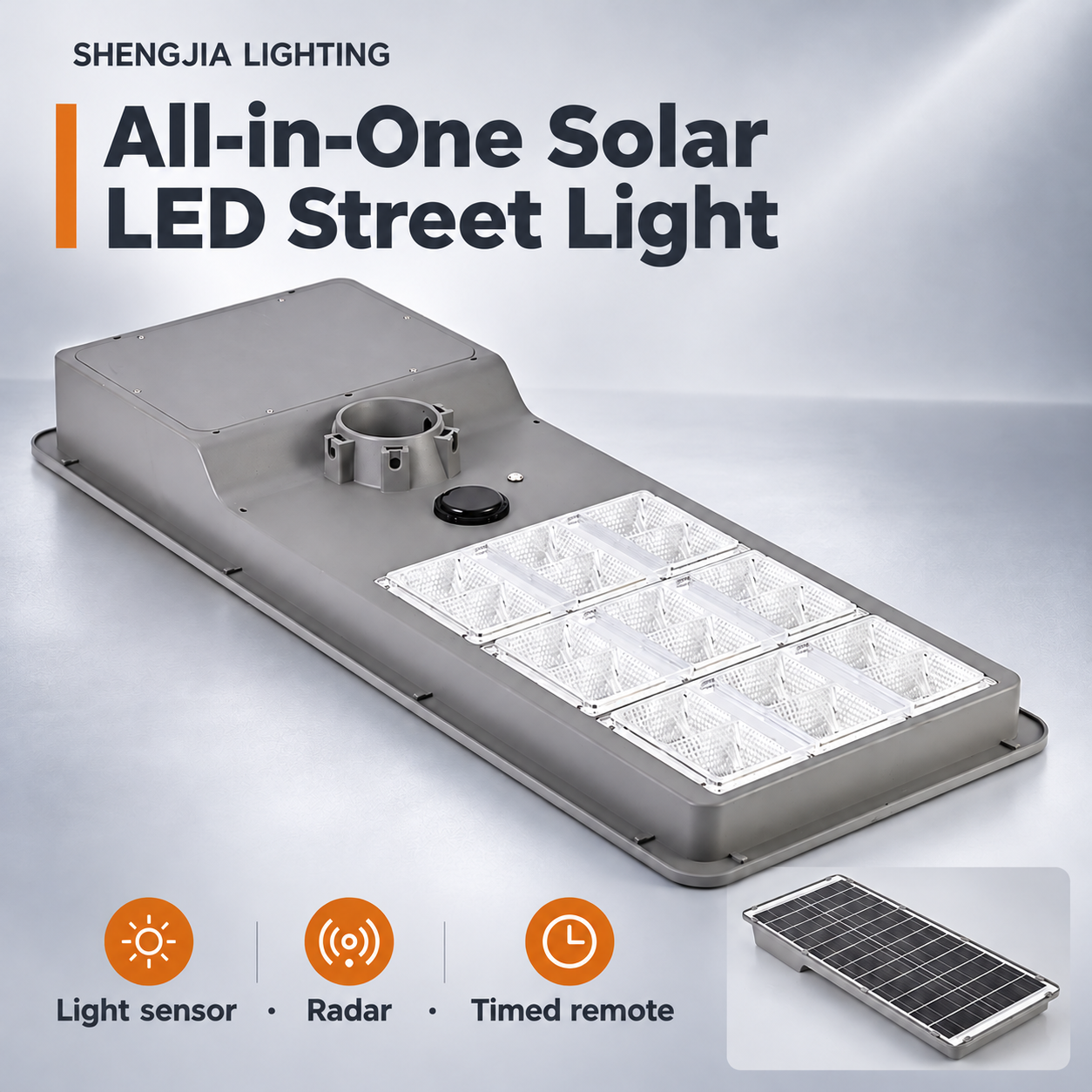

All-in-One Solar LED Street Light
An integrated solar street light with segmented LED optics, movement-responsive lighting and remote control with timer.
- Integrated rear solar panel
- Radar Motion Sensing
- Remote Control with Timer
- Colour Temperature
- 6000 K
- IP Rating
- IP65
- Configurations
- 3 / 4 / 5 Lighting Modules
MODEL SELECTION
Choose a configuration
55 / 70 / 85 W refer to solar panel power. Product photographs remain the 3-module version when you select another configuration.
COMPARE CONFIGURATIONS
Models & technical specifications
Compare solar panel power, LED chip counts and overall dimensions for each configuration.
On smaller screens, swipe the table to compare every configuration.
| Configuration | 3 Lighting Modules | 4 Lighting Modules | 5 Lighting Modules |
|---|---|---|---|
| Solar panel power | 55 W | 70 W | 85 W |
| LED chips | 288 | 384 | 480 |
| Overall dimensions (mm) | 924 × 353 × 90 | 1323 × 353 × 90 | 1323 × 353 × 90 |
55 / 70 / 85 W are solar panel ratings, not LED wattage.
| Colour Temperature | 6000 K cool white |
|---|---|
| Stated outdoor protection rating | IP65 |
| Radar sensing range | Up to 8 m |
| Recommended mounting height | 4–7 m |
| Lighting duration | 6–12 hours* |
| Control options | Light sensor, radar motion sensing & remote control with timer |
* Lighting duration depends on available sunlight, battery charge and the selected operating mode.
PRODUCT DETAILS
Key Features
Review the physical design, key components and controls before choosing a configuration.
View Full-Size Detail
View Full-Size Detail Outdoor Protection
Outdoor lighting with an IP65 protection rating. Plan the mounting position and operating mode for your installation.
View Full-Size Detail Radar Motion Sensing
The radar sensor provides a sensing range of up to 8 m. Detected movement brings brighter lighting; when no movement is detected, the light operates at a lower output.

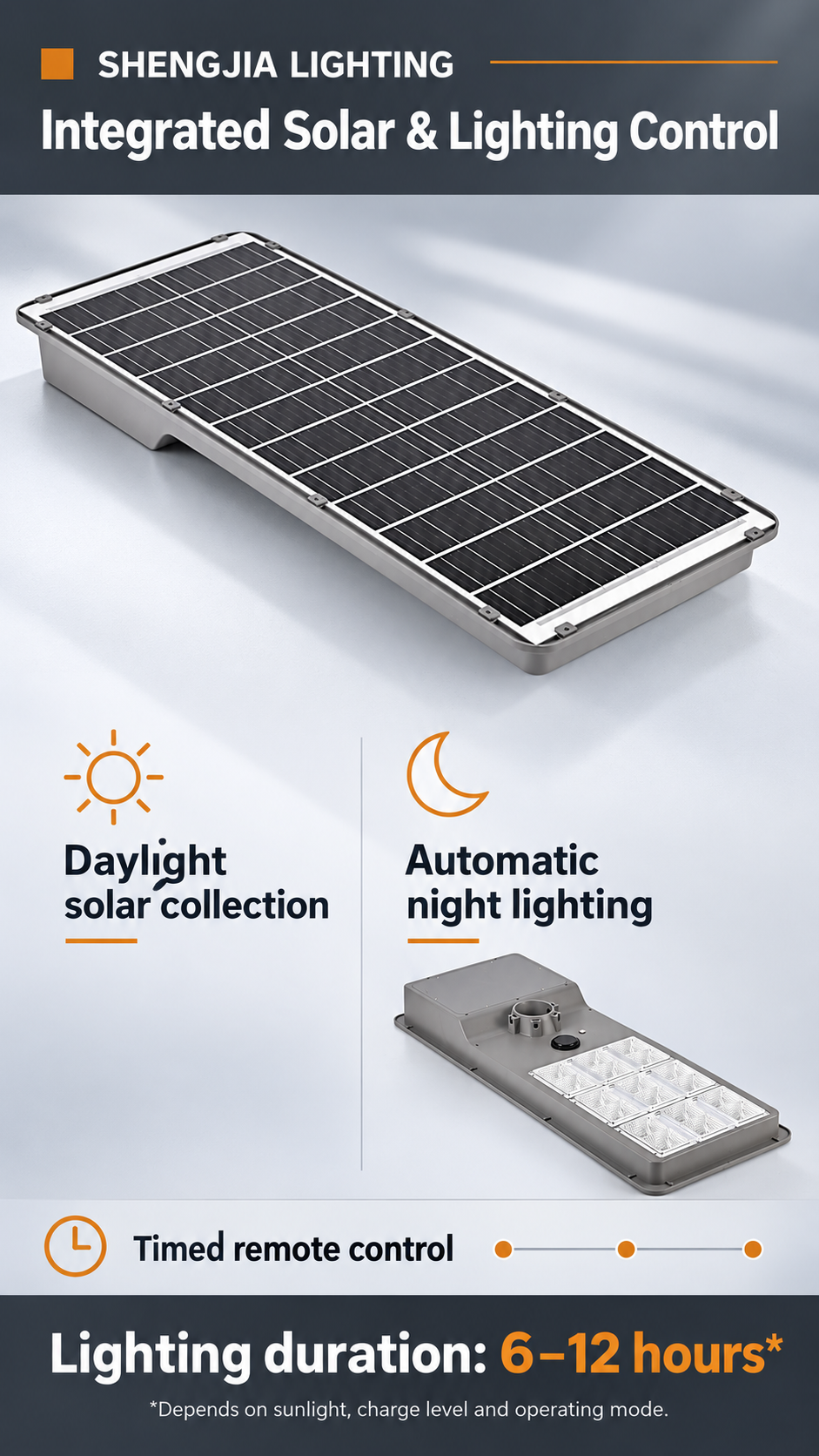

View Full-Size Detail Lighting Controls
The integrated rear panel collects solar energy during daylight. Light control switches to automatic lighting after dark, with radar response and remote timing available.
SIZE & INSTALLATION
Dimensions & Mounting Requirements
Use the model dimensions and mounting references when planning your order.
Lamp dimensions
3 Lighting Modules: 924 × 353 × 90 mm. 4 and 5 Lighting Modules: 1323 × 353 × 90 mm.
Mounting height
The recommended mounting height is 4–7 m. Share the pole and mounting arrangement so compatibility can be reviewed.
Solar exposure and operation
Allow daylight exposure to the rear panel. The stated 6–12 hour lighting duration depends on sunlight, battery charge and the selected mode.
APPLICATIONS
Applications
Share the installation location, mounting position and required lighting schedule so the configuration can be reviewed for your project.
Application images are illustrative references. Review the product configuration and installation conditions for your own installation.
DETAILED PRODUCT IMAGES
Additional Product Details
Browse the previews below, then open a topic for the complete image and explanation.
ApplicationsChoose a configuration around the installation location, mounting position and operating mode.
05 / APPLICATIONS

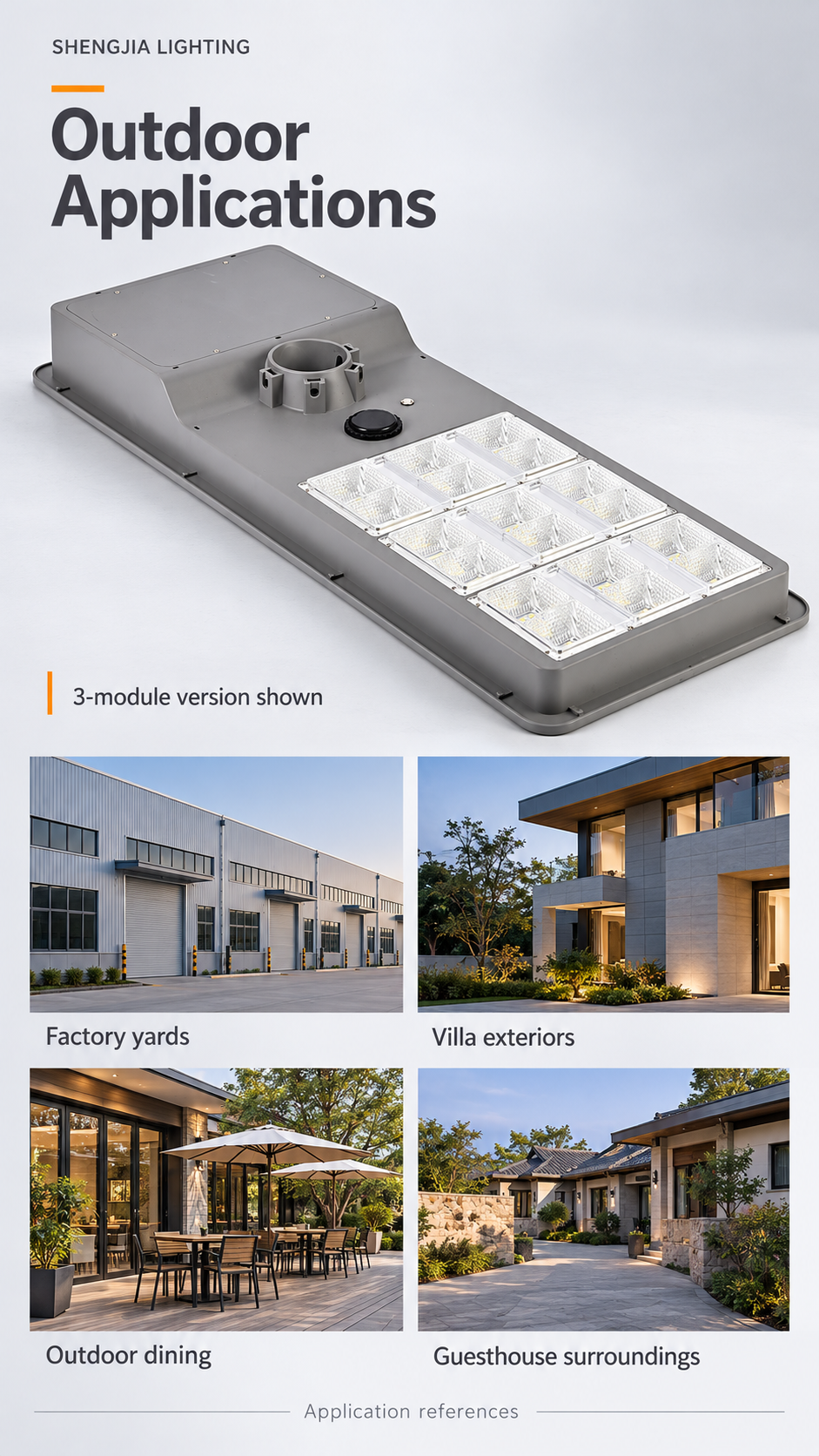

Applications
Choose a configuration around the installation location, mounting position and operating mode. Share these requirements when planning lighting for the locations below.
- Factory yards
- Villa exteriors
- Outdoor dining areas
- Guesthouse surrounds
Product ConstructionReview the actual external features before selecting a configuration.
07 / PRODUCT CONSTRUCTION

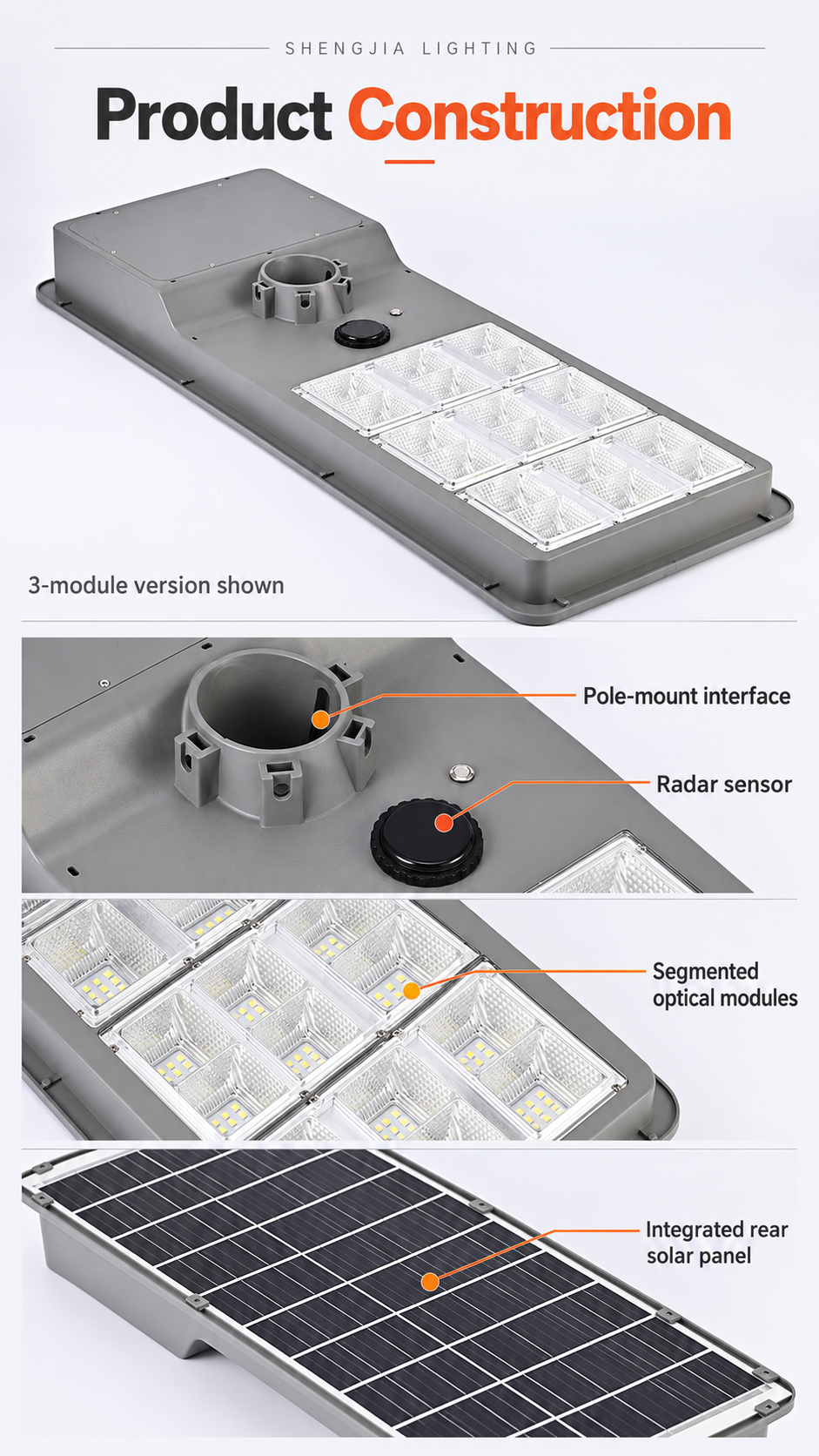

Product Construction
Review the actual external features before selecting a configuration. The product photographs show the sensor, mounting connection, lighting face and rear panel.

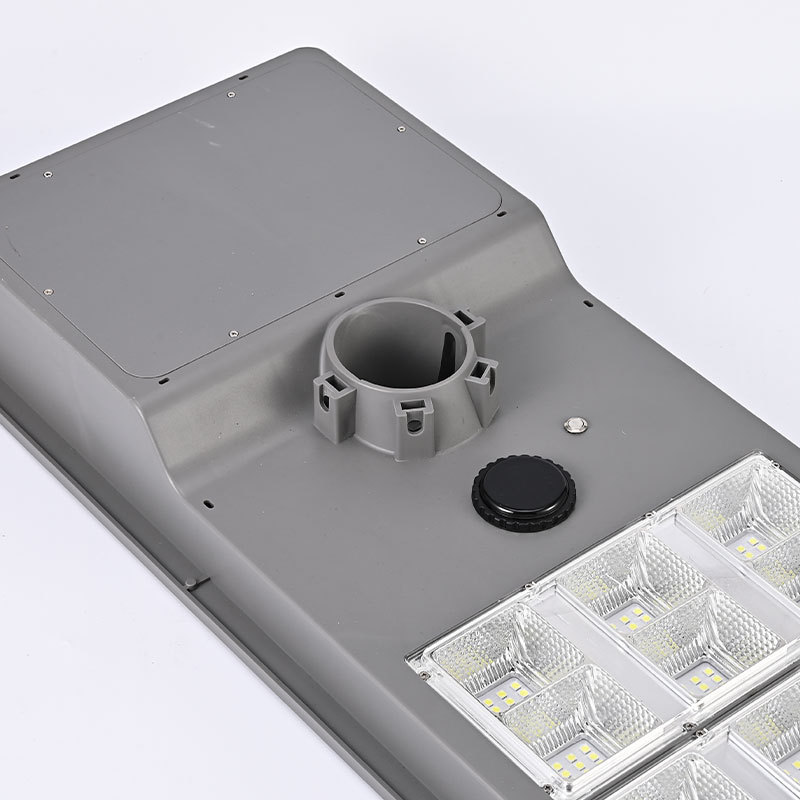

- Radar sensor
- Controls the response to detected movement.
- Pole mounting connection
- Review the mounting arrangement for your installation; recommended height is 4–7 m.
- Segmented LED optics
- Available in 3, 4 and 5-module configurations.

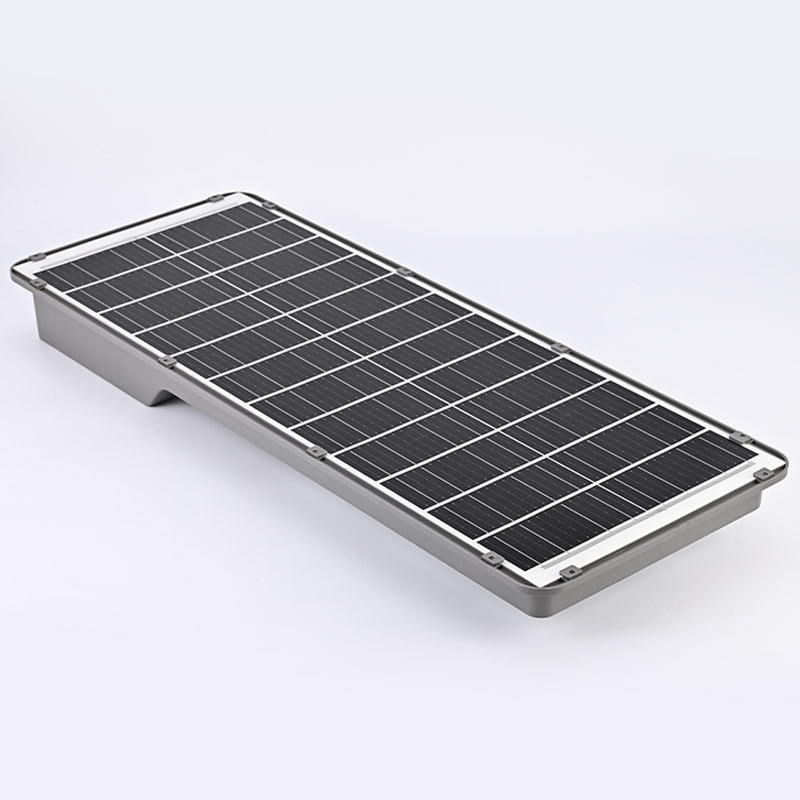

- Integrated rear solar panel
- Solar panel ratings: 55 / 70 / 85 W by configuration.
Product ViewsExplore the original front and rear photographs, with a closer view of the radar sensor and pole mounting connection.
08 / PRODUCT VIEWS

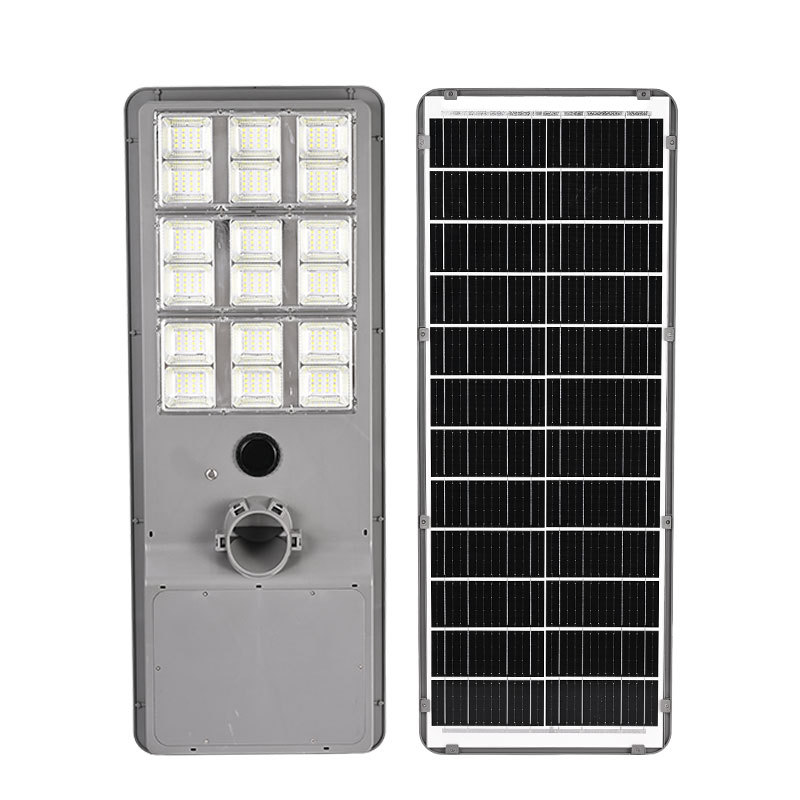

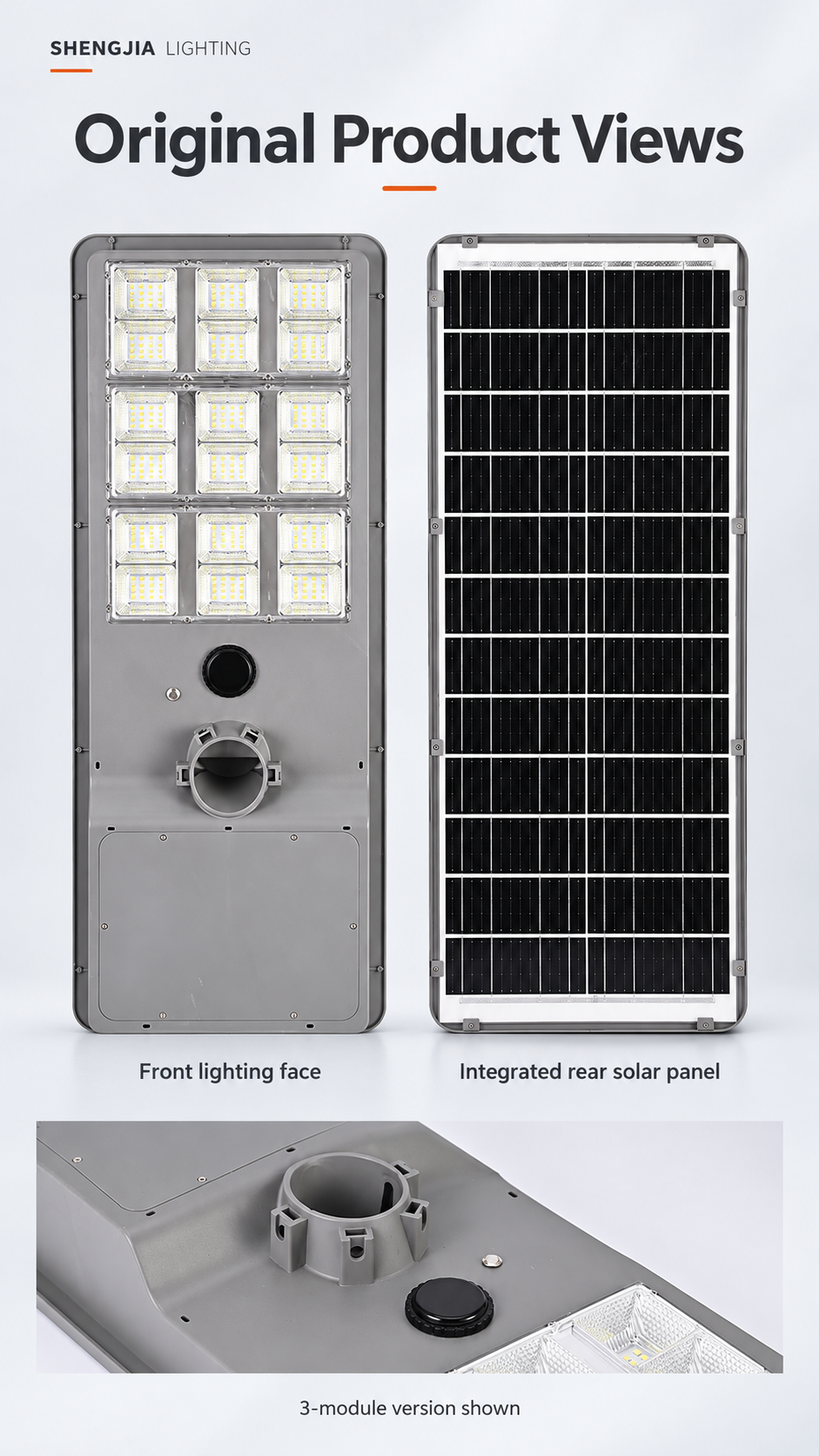

Product Views
Explore the original front and rear photographs, with a closer view of the radar sensor and pole mounting connection.
All photographs show the 3-module version. Select an image to inspect the full product view.
OEM & Branding RequirementsUse your inquiry to discuss product selection, order quantity and private label needs for your market.

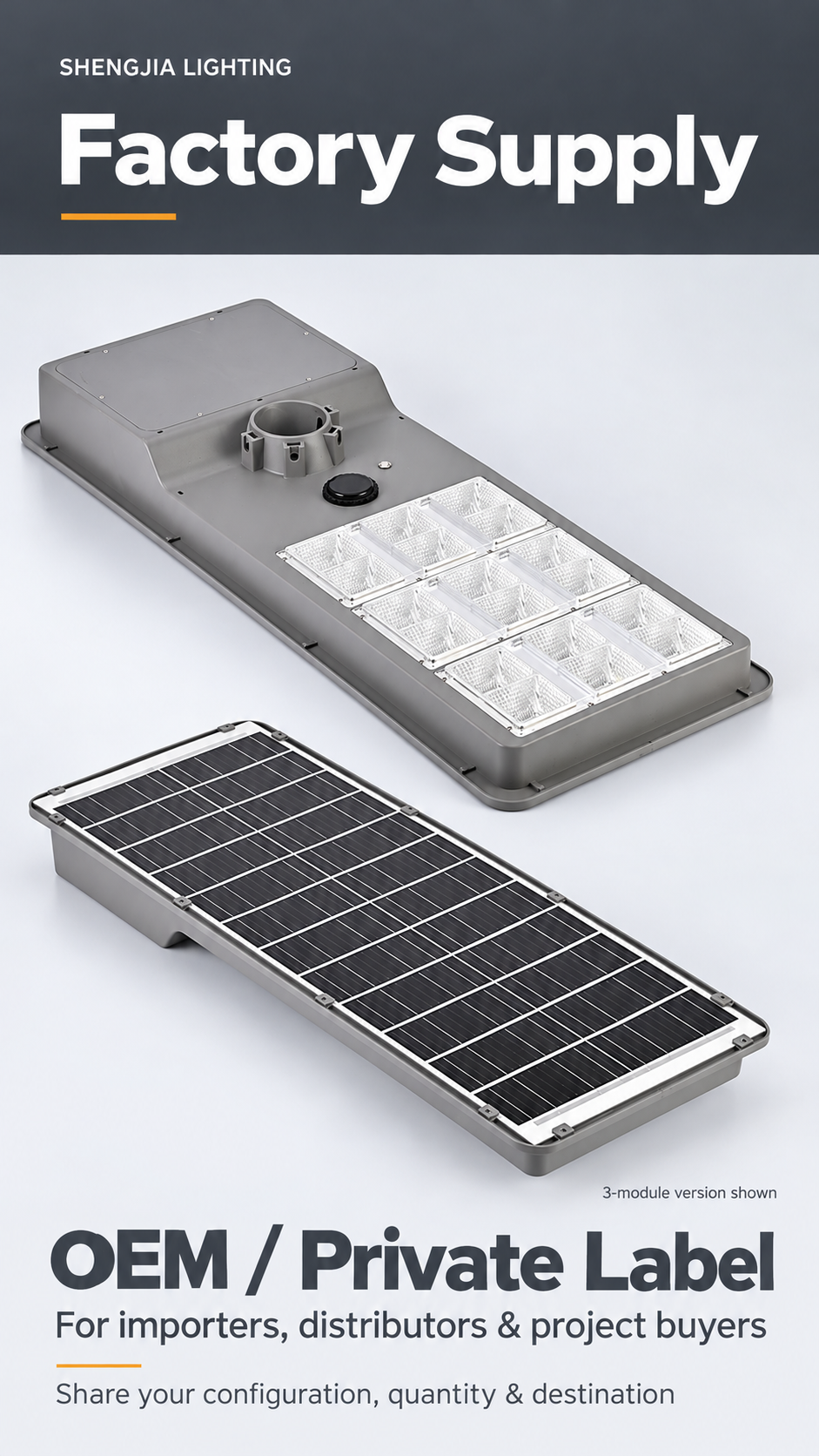

OEM & BRANDING REQUIREMENTS
Discuss quantity, configuration and private label needs.
Use your inquiry to discuss product selection, order quantity and private label needs for your market.
WHOLESALE & PROJECT SUPPLY
Wholesale & Project Supply
Share your selected configuration, quantity and destination market. Add the installation location or operating requirements that matter to your order.
- Confirm the configurationModel, components, dimensions and mounting items.
- Discuss order requirementsBranding, packaging, documentation and your delivery schedule.
- Review the quotationConfirm the final specification and commercial terms before ordering.
COMMON QUESTIONS
Product FAQs
How long does the light operate?
The stated lighting duration is 6–12 hours, depending on sunlight, battery charge and the selected operating mode.
What mounting height is recommended?
The recommended mounting height is 4–7 m. Share your pole and mounting arrangement so compatibility can be reviewed.
How does radar control work?
Detected movement brings brighter lighting; when no movement is detected, the light operates at a lower output. The stated radar sensing range is up to 8 m.
What should I include in my quote request?
Include your selected configuration, quantity and delivery country or region. Add installation conditions, the required operating schedule and any branding or packaging requirements for our team to review.
