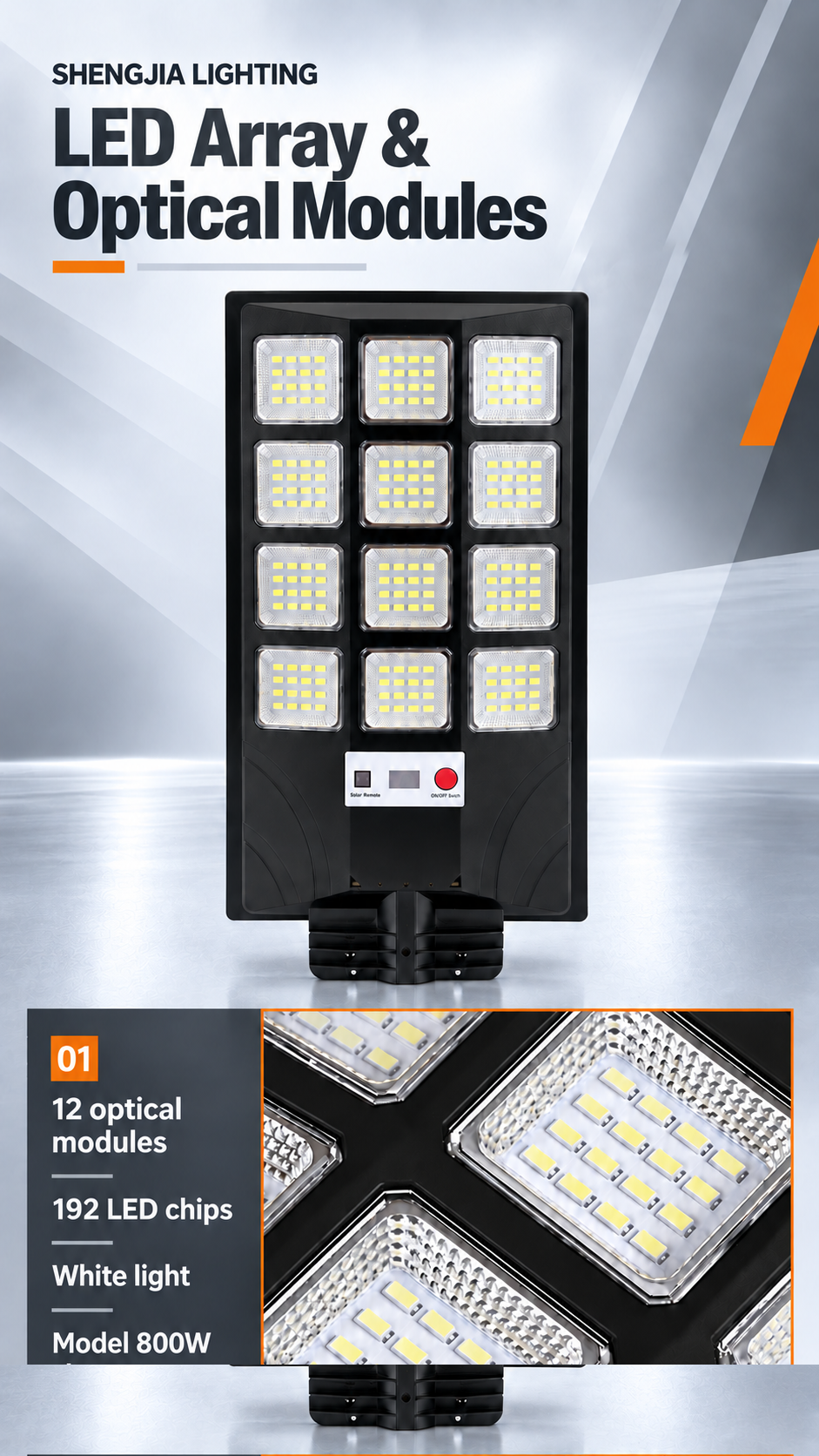

View Full-Size Detail Segmented LED Optics
The lighting face uses individual square optical modules arranged in three columns. The 500W model has nine optics, 800W has twelve, and 1200W has fifteen.
SOLAR LIGHTING

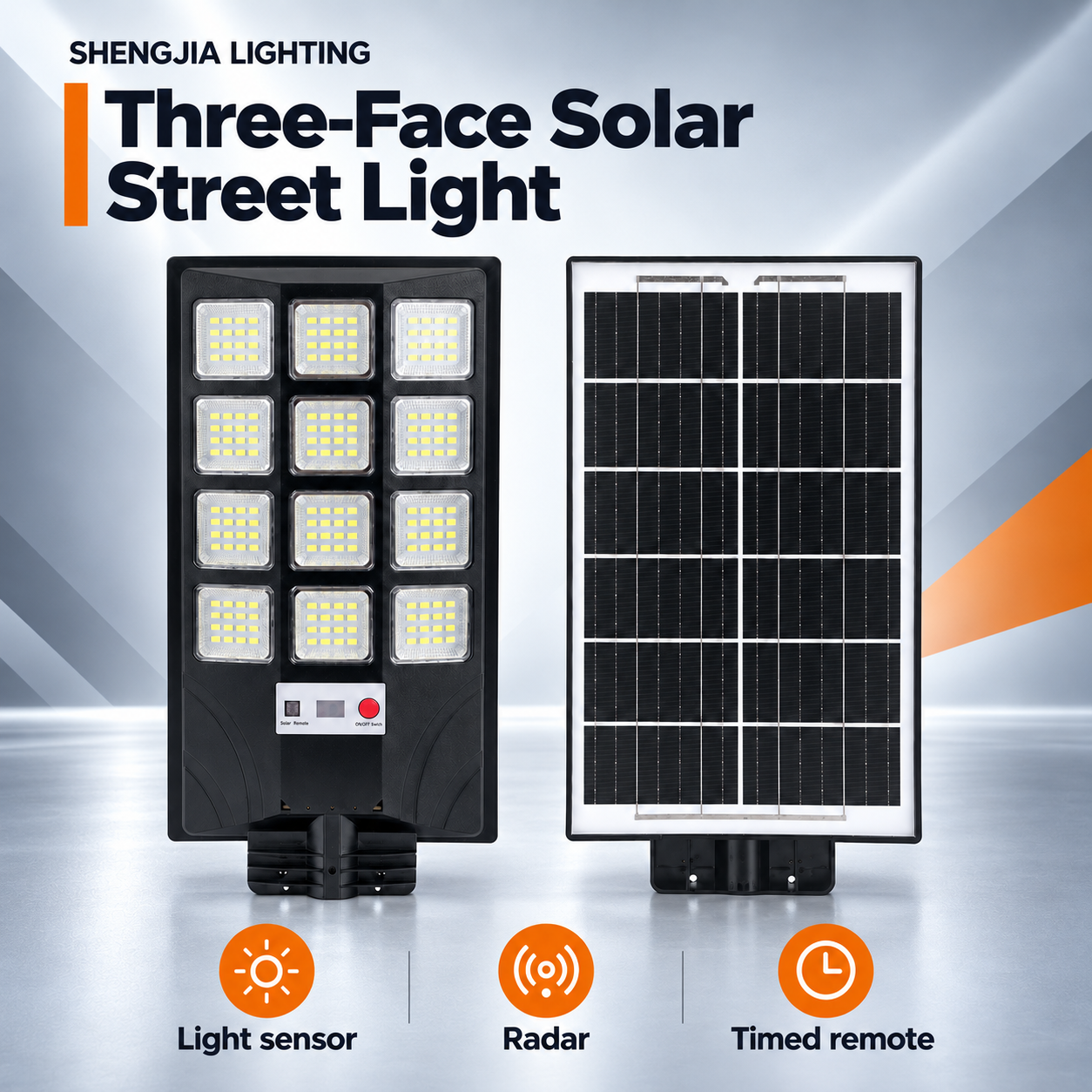

Three-Face Solar Street Light
An integrated solar lamp with square optical modules, radar sensing and remote control with timer, offered in three model configurations.
- IP65 · ABS + PC
- Radar motion sensing · remote control with timer
- 9 / 12 / 15 optical modules
- Light Colour
- White light
- IP Rating
- IP65
- Mounting height
- 3–4m
MODEL SELECTION
Choose a configuration
- Dimensions
- 340 × 180 × 35 mm
- Solar panel
- 6V / 10W
- Battery capacity
- 4000mAh
- LED chips
- 192
W-labelled names identify the models; they are not verified rated LED output. Compare the separate solar panel and battery specifications below.
COMPARE CONFIGURATIONS
Models & technical specifications
Review the listed sizes, solar panel ratings, battery capacities and optical layouts before requesting a quotation.
On smaller screens, swipe the table to compare every configuration.
| Model | 500W | 800W | 1200W |
|---|---|---|---|
| Size (L × W × H) | 295 × 180 × 35 mm | 340 × 180 × 35 mm | 400 × 180 × 35 mm |
| Solar panel | 6V / 8W | 6V / 10W | 6V / 12W |
| Battery capacity | 3000mAh | 4000mAh | 6000mAh |
| LED chips | 144 | 192 | 240 |
| LED package | 5730 | 5730 | 5730 |
| Optical modules | 9 | 12 | 15 |
| Optical arrangement | 3 rows × 3 columns | 4 rows × 3 columns | 5 rows × 3 columns |
500W / 800W / 1200W are model names, not rated LED power. Solar panel ratings are listed separately.
| Light Colour | White light |
|---|---|
| Protection rating | IP65 |
| Housing | ABS + PC |
| Solar panel construction | Integrated rear polycrystalline panel |
| Light control | Off in daylight; on after dark |
| Radar response | Brighter on arrival; dimmer when idle |
| Sensing distance | Up to 10m |
| Recommended mounting height | 3–4m |
| Remote timer presets | 3H / 5H / 8H |
Remote timer presets describe a schedule, not guaranteed battery runtime. Actual lighting duration depends on charge and operating conditions.
PRODUCT DETAILS
Key Features
Review the physical design, key components and controls before choosing a configuration.
View Full-Size Detail
View Full-Size Detail Outdoor Protection
The housing is specified as ABS + PC, with IP65 outdoor protection confirmed for all three models.

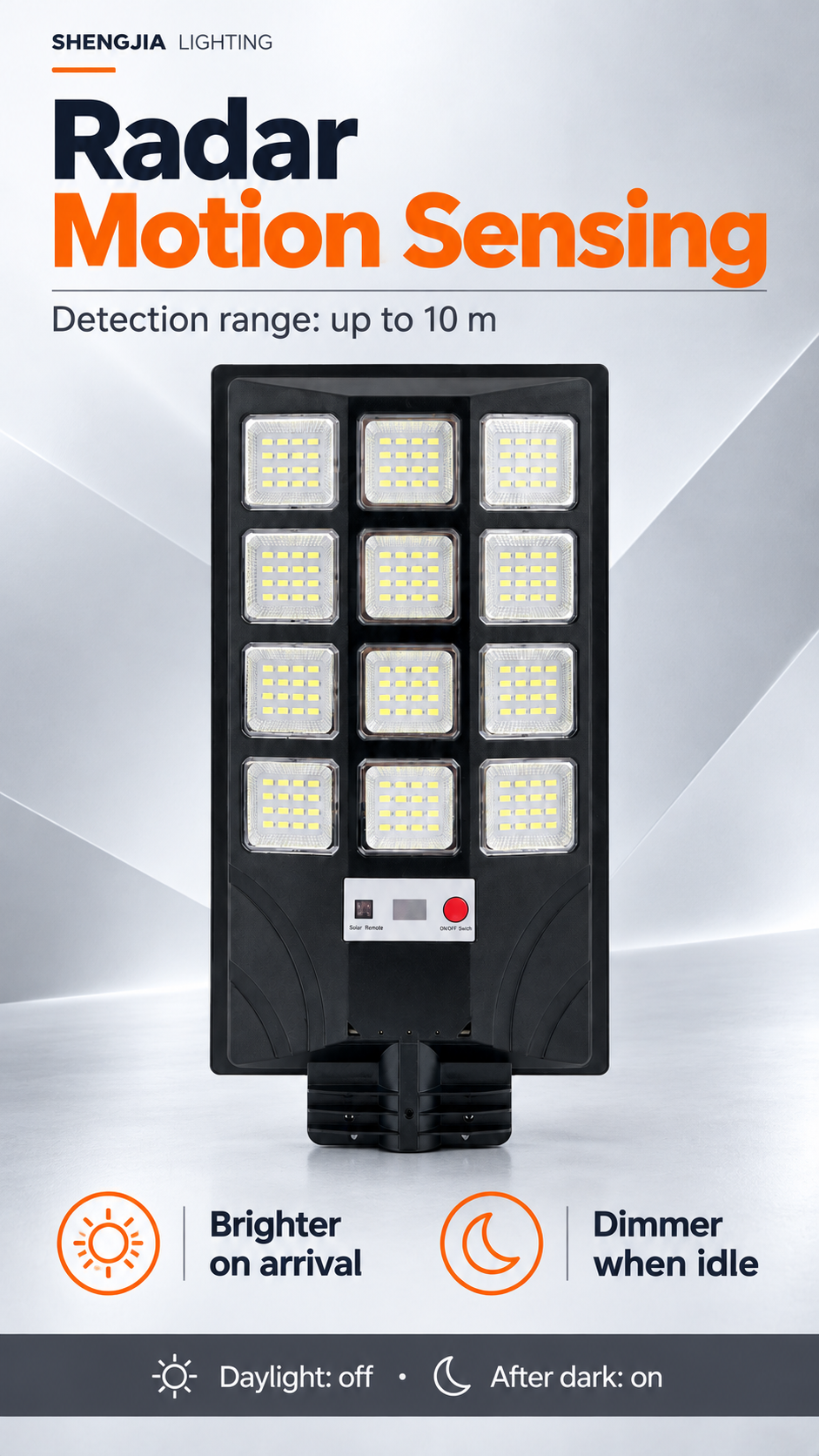

View Full-Size Detail Radar Motion Sensing
Radar sensing increases the lighting level on arrival and reduces it when the area is idle. The sensing distance is up to 10m.

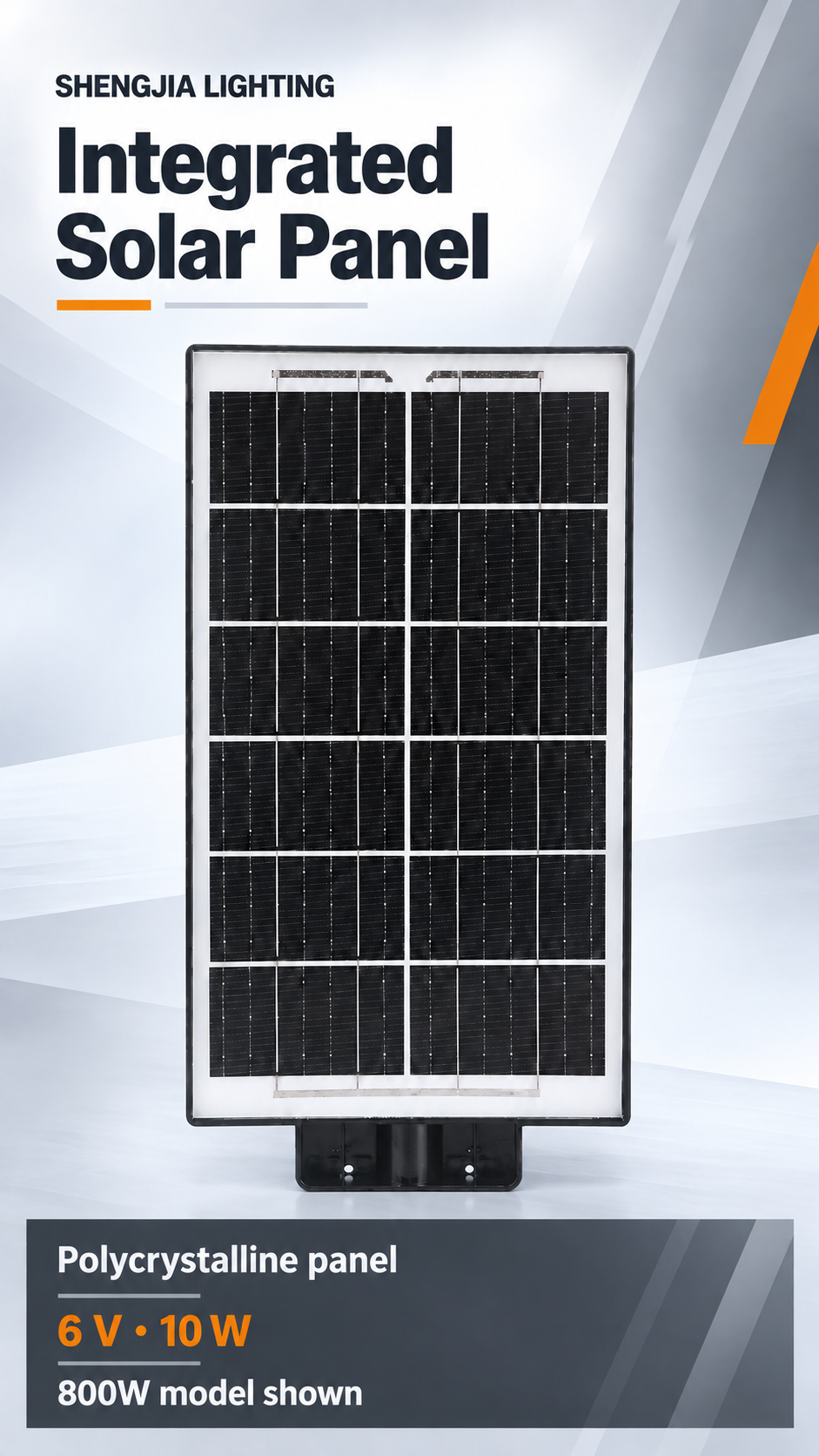

View Full-Size Detail Solar Charging
An integrated polycrystalline solar panel forms the rear of the lamp. Each model has its own listed panel specification: 6V 8W, 6V 10W or 6V 12W.
SIZE & INSTALLATION
Dimensions & Mounting Requirements
Use the model dimensions and mounting references when planning your order.

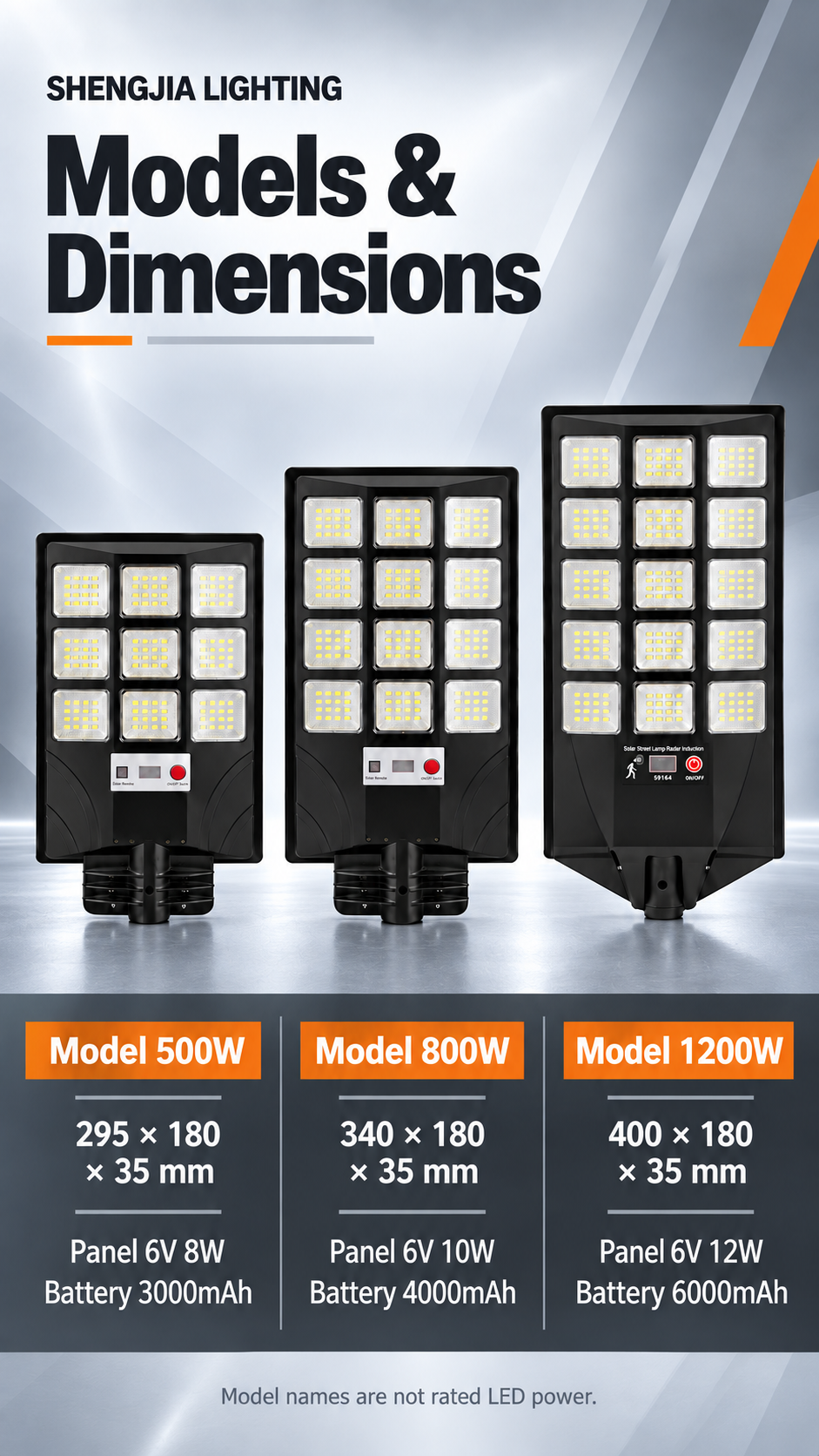

Model dimensions

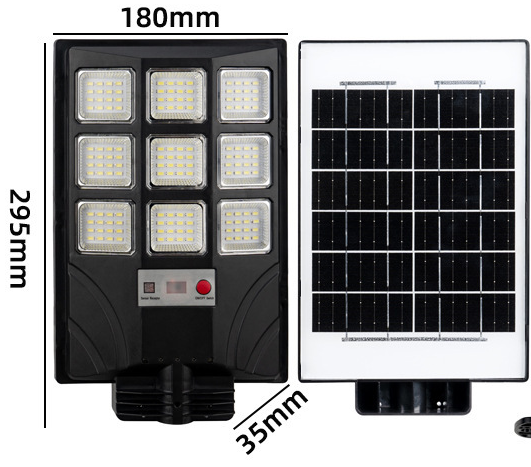

500W: 295 × 180 × 35 mm. 800W: 340 × 180 × 35 mm. 1200W: 400 × 180 × 35 mm.

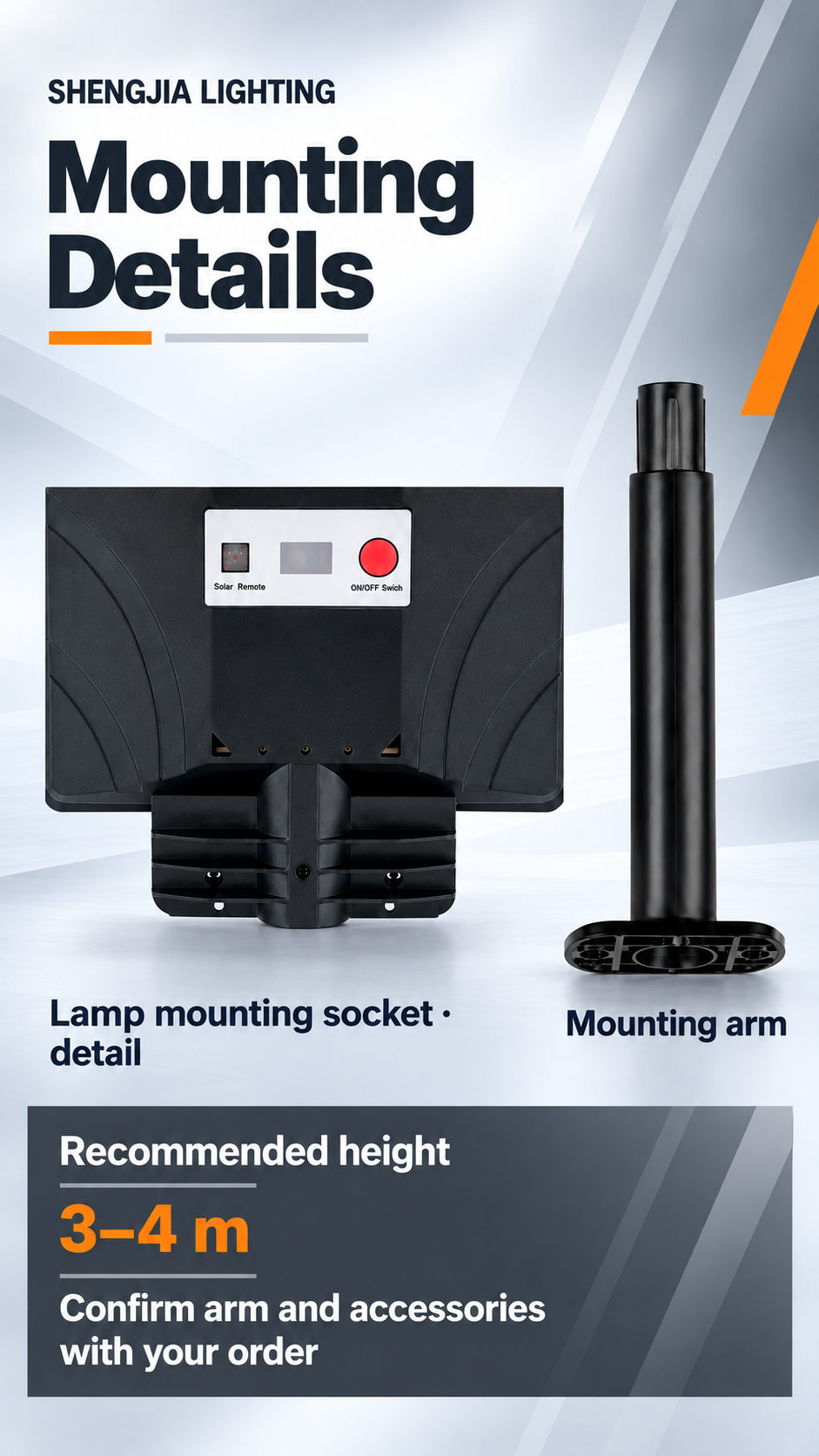

Mounting height
The recommended mounting height is 3–4 m. Review the lower mounting base and arm arrangement for the chosen version.
Operating conditions
Radar sensing distance is stated as up to 10 m. The 3H / 5H / 8H remote presets describe schedules; actual runtime depends on available charge and operating conditions.
APPLICATIONS
Applications
Share the installation location, mounting position and required lighting schedule so the configuration can be reviewed for your project.
Application images are illustrative references. Review the product configuration and installation conditions for your own installation.
DETAILED PRODUCT IMAGES
Additional Product Details
Browse the previews below, then open a topic for the complete image and explanation.

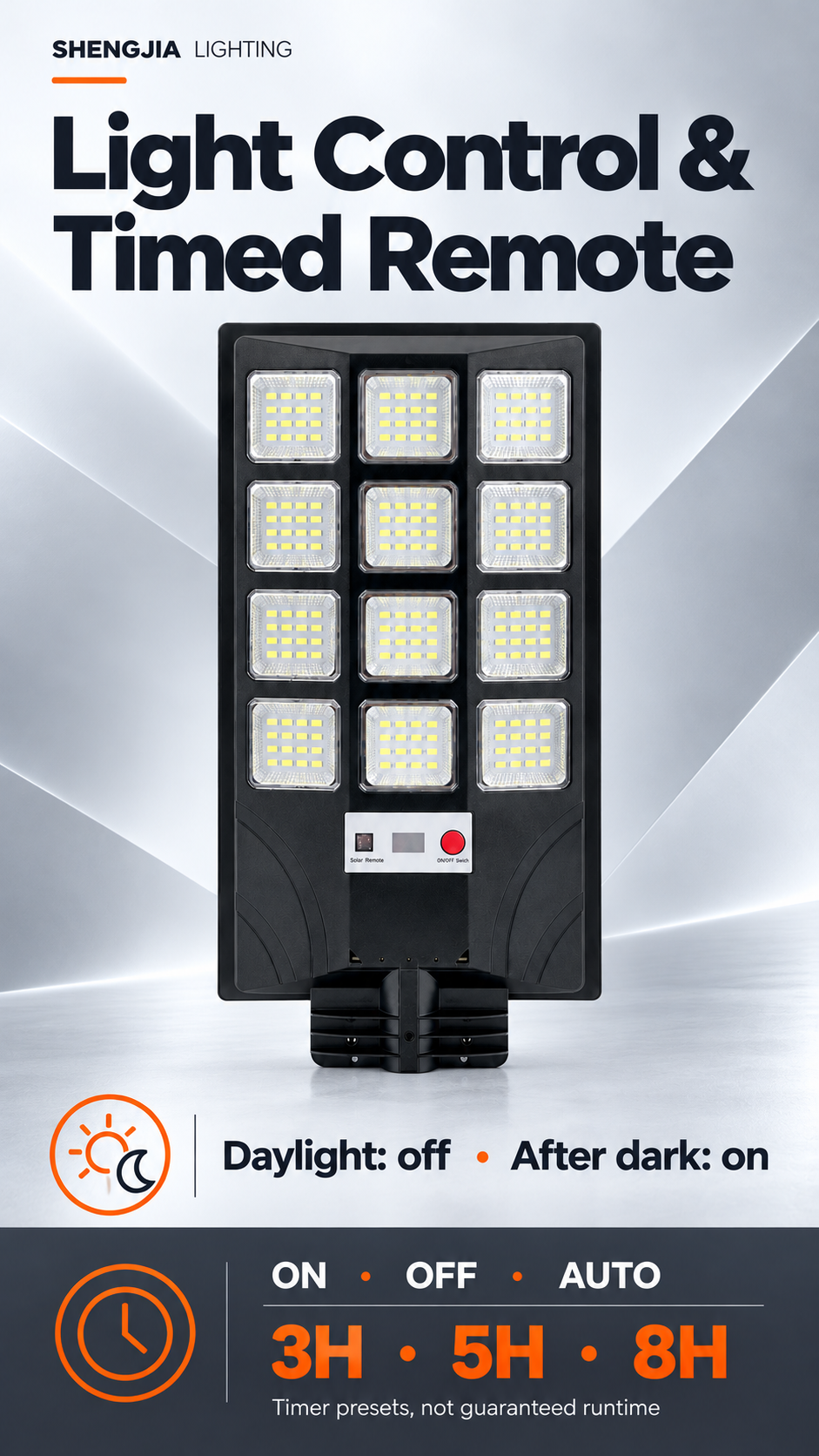

Lighting ControlThe supplied black controller includes 3H, 5H and 8H timer presets.
04 / LIGHTING CONTROL
Understand the day-to-night cycle.
The supplied black controller includes 3H, 5H and 8H timer presets. The physical red ON/OFF button remains accessible on the lamp body.
Timer settings describe the control schedule. Lighting duration depends on the available charge and operating conditions.
Original black controller
3H / 5H / 8H are timer presets, not guaranteed battery runtime.

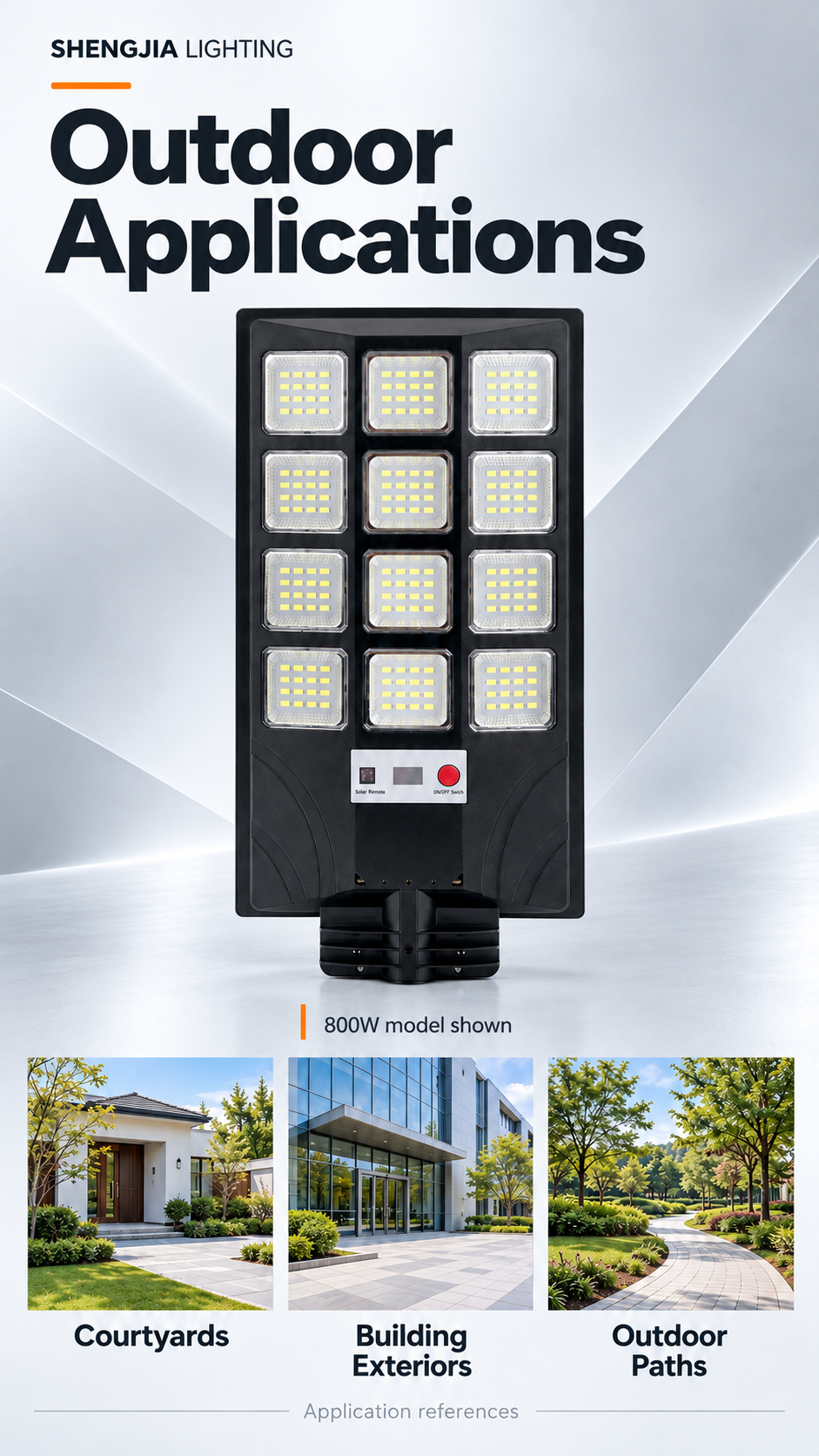

ApplicationsCourtyards, building exteriors and outdoor paths provide practical settings for discussing model selection and installation.
06 / APPLICATIONS
Applications
Courtyards, building exteriors and outdoor paths provide practical settings for discussing model selection and installation.
Share the intended location, mounting arrangement and preferred operating mode so our team can prepare the product quotation.
- Courtyards
- Building exteriors
- Outdoor paths
Product ConstructionThe recommended mounting height is 3–4m.

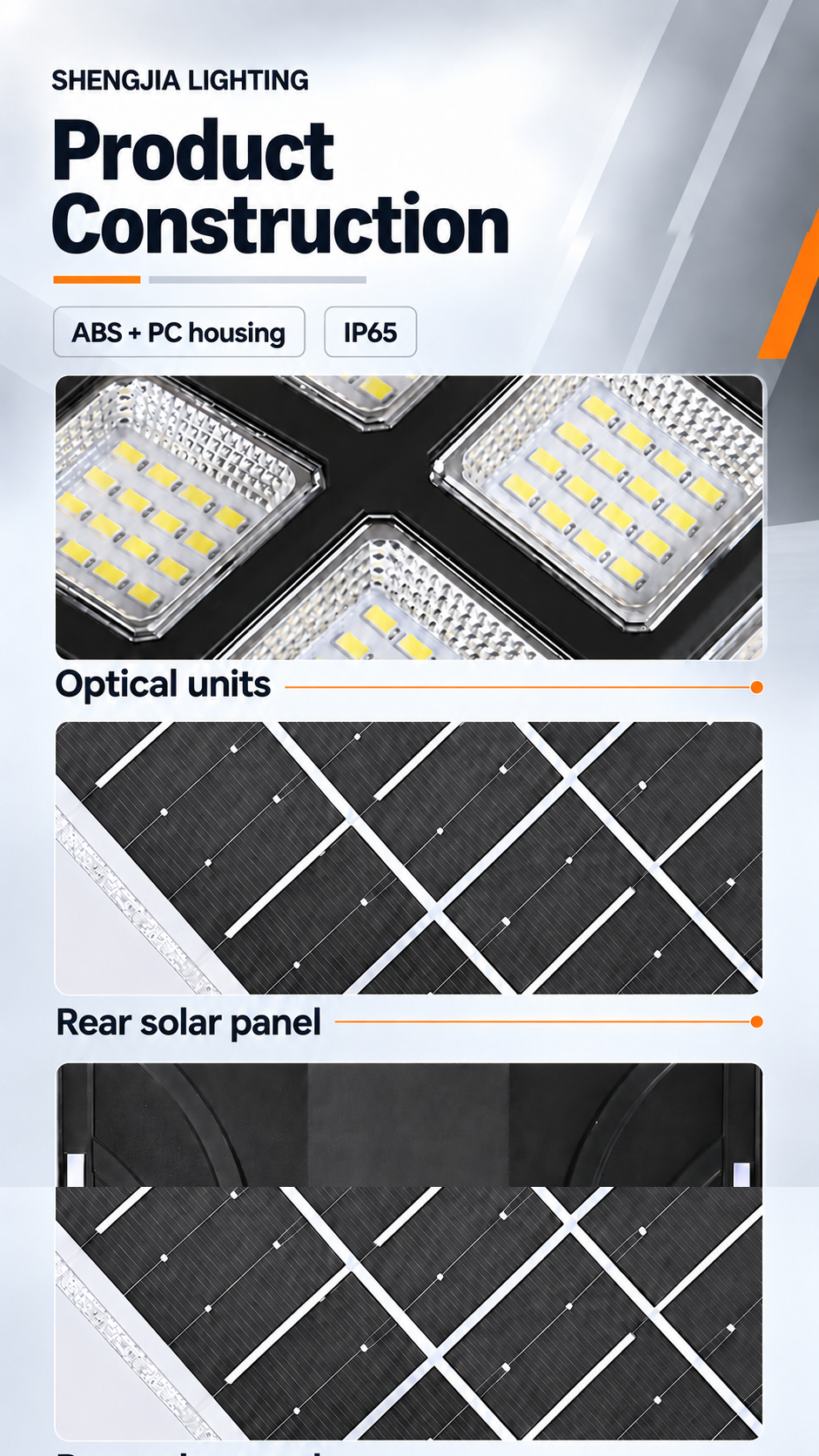

08 / PRODUCT CONSTRUCTION
Product Construction
The recommended mounting height is 3–4m. Review the mounting base and arm arrangement for your chosen version before ordering.
Tell us the installation location and intended mounting arrangement. Confirm the required accessories and fixing details in your quotation.
- Sensor & controls
- Silver control plates on the 500W and 800W models; a printed black control area on the 1200W model.
- Mounting connection
- Review the model-specific lower mounting base and arm arrangement; recommended mounting height is 3–4m.
- Segmented LED optics
- 9 / 12 / 15 optical modules, with 144 / 192 / 240 LED chips by model.
- Integrated rear solar panel
- Rear polycrystalline panels: 6V / 8W, 6V / 10W or 6V / 12W by model.
Product ViewsExplore the original product photographs, with a closer view of the lighting face, rear panel and external details.
09 / PRODUCT VIEWS
Product Views
Explore the original product photographs, with a closer view of the lighting face, rear panel and external details.

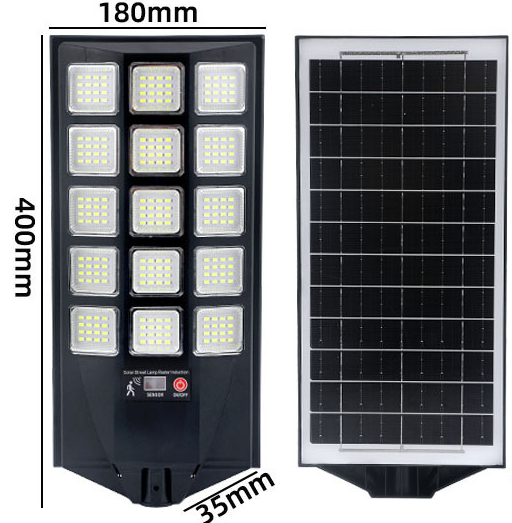

The 1200W model has its own tapered housing and black control area. Select an original view to enlarge the actual model.
OEM & Branding RequirementsUse your inquiry to discuss product selection, order quantity and private label needs for your market.
OEM & BRANDING REQUIREMENTS
Discuss quantity, configuration and private label needs.
Use your inquiry to discuss product selection, order quantity and private label needs for your market.
WHOLESALE & PROJECT SUPPLY
Wholesale & Project Supply
Share your selected configuration, quantity and destination market. Add the installation location or operating requirements that matter to your order.
- Confirm the configurationModel, components, dimensions and mounting items.
- Discuss order requirementsBranding, packaging, documentation and your delivery schedule.
- Review the quotationConfirm the final specification and commercial terms before ordering.
COMMON QUESTIONS
Product FAQs
What mounting height is recommended?
The recommended mounting height is 3–4 m. Review the lower mounting base and arm arrangement for the chosen model.
What do the remote timer presets mean?
3H, 5H and 8H describe the control schedule, rather than guaranteed battery runtime. Available charge and operating conditions affect lighting duration.
How does motion-responsive lighting work?
Radar sensing increases the lighting level on arrival and reduces it when the area is idle. The stated sensing distance is up to 10 m.
What should I include in my quote request?
Include your selected configuration, quantity and delivery country or region. Add installation conditions, the required operating schedule and any branding or packaging requirements for our team to review.
